无线物联网LTE MTC/eMTC ,NB-IoT认证测试
类别:行业快讯 文章出处:沃特测试发布时间:2019-07-01 浏览人次:
一、物联网发展趋势
NB-IoT是基于移动通信网络的物联网技术体系,具有广覆盖、大连接、低功耗、低成本的优势,解决了传统物联网存在的技术碎片化、覆盖不足的问题,极大提升了物联网的应用能力,获得了业内的广泛支持,将成为物联网主流技术。
目前,全球多个运营商紧跟NB-IoT发展步伐,在标准协议完成之后第一时间进行技术验证、测试和商用部署。根据GSA统计,截至2019年1月中旬,全球45个国家/地区的78家运营商正式商用NB-IoT网络,网络数量是去年同期的两倍。
二、物联网的应用以及技术标准要求

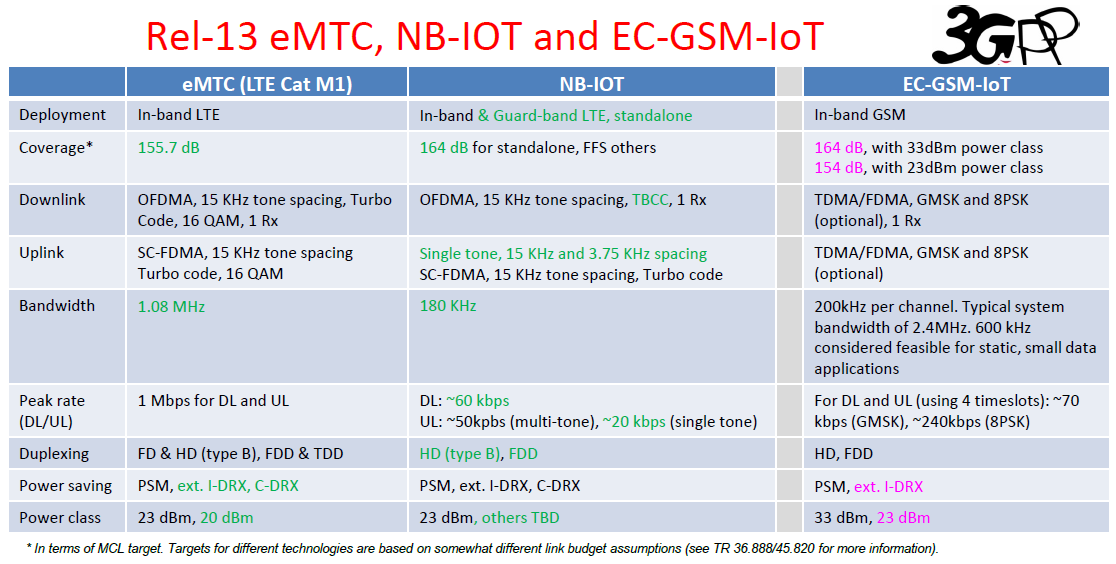

In Release-14 3GPP is enhancing the above technologies
? Positioning enhancements [eMTC, NB-IOT, EC-GSM-IOT]
? Multicast, mobility enhancements for [eMTC, NB-IOT]
? New power classes, access/paging enhancements [NB-IOT]
? Higher data rates and VoLTEsupport for [eMTC]
根据CEPT(ECC)定义的标准,信特斯可以完整的测试LTE MTC/eMTC、NB-IoT UE端的测试标准,以下是UE终端,BS终端,多功能终端的标准要求
Description and technical conditions for IoT Cellular Systems
Technologies | Applicable ETSI standards | Technical conditions |
EC-GSM-IoT | EN 301 502 [25] EN 301 511 [26] EN 301 908-18 [27] | No specific requirements in addition to GSM (note 1) and the applicable harmonised standards |
LTE MTC/eMTC | EN 301 908-1 [23] EN 301 908-13 [31] EN 301 908-14 [32] EN 301 908-15 [33] EN 301 908-18 [27] | No specific requirements in addition to LTE (note 2) and the applicable harmonised standards |
NB-IoT | EN 301 908-1 [23] EN 301 908-13 [31] EN 301 908-14 [32] EN 301 908-15 [33] EN 301 908-18 [27] | Standalone mode ? A frequency separation of 200 kHz or more between the standalone NB-IoT channel edge of one network and the UMTS/LTE channel edge of the neighbouring network. ? A frequency separation of 200 kHz or more between the standalone NB-IoT channel edge of one network and the GSM channel edge of the neighbouring network. In-band mode ? No specific requirements in addition to LTE (note 2) and the applicable harmonised standards Guard band mode ? A frequency separation of 200 kHz or more between the NB-IoT channel edge and the edge of the operator's block, taking into account existing guard bands between operators' block edges or the edge ofthe operating band (adjacent to other services). |
Note 1: Frequency separation requirements on GSM as defined in ECC Report 266 [14] Note 2: Frequency separation requirements on LTE as defined in ECC Report 266 [14] |
沃特检验集团旗下信特斯实验室获得CNAS、NVLAB等授权,拥有丰富的测试经验和完善的解决方案, 能够为短距离SDR产品 (蓝牙、WI-FI、无线遥控器、Zigbee等)、2G、3G、4G手机等无线射频产品提供美国FCC、加拿大ISED、欧盟CE、台湾NCC、韩国KCC、日本Telec/JATE、埃及NTRA等一站式检测认证服务!
